Key Features of the Sunlight Dome

01

02

03

04

05

Primary Roof Dome

Fills your space with real, healthy sunlight

Boosts Vitamin D

Supports your health and well-being by promoting natural Vitamin D absorption

Save on Electricity Bills

Cut down on artificial lighting and enjoy long-term savings

Direct Profit on Energy

Lower power consumption means more money in your pocket

Elegant Design

Complements both modern and traditional interiors

06

07

08

09

UV-Protected

Filters out harmful rays while letting in pure daylight

Low Maintenance

Durable, long-lasting, and hassle-free

Eco-Friendly Solution

A sustainable, green lighting alternative

Quick & Easy Installation

Fast setup with minimal disruption to your space

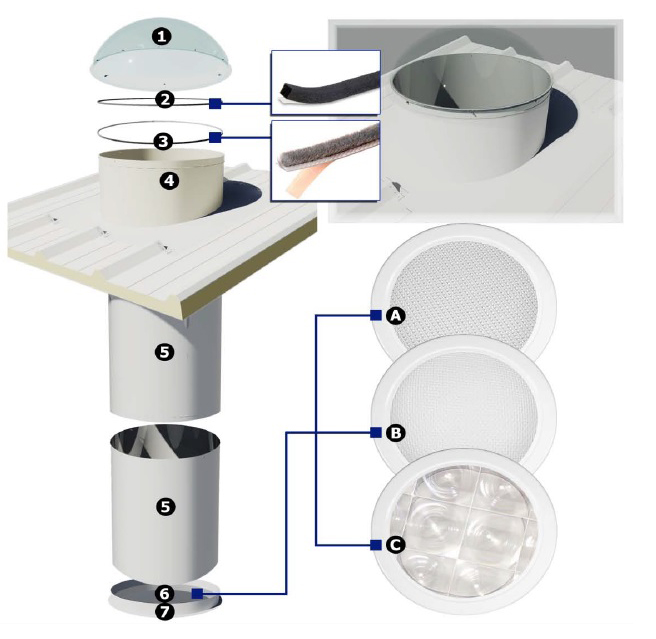

Sunlight Dome Basic Parts

01

Primary Roof Dome

High Impact Polycarbonate or UV stabilized Non yellowing Acrylic Primary Dome.

02

Thermal Break Foam Adhesive Tape.

Seals the system from moisture, dust and bugs infiltration and thermally separates the top tube from the flashing.

03

Pile Weather Seal w/Adhesive.

Eliminate condensation, seals from dust and bugs, controls the flow of air to cool down the tubes.

04

Roof Flashing.

Polyester PVDF aluminum that supports the dome and the reflective tubes.

05

Reflective Tubes and Bends.

98% reflective property Miro Silver.

06

Acrylic Light Diffuser.

Efficiently Diffuses Sunlight to the interior spaces.

A. Clear Prismatic Diffuser
B. White Frosted Diffuser
C. Fresnel Lens Diffuser.

07

Diffuser Holder.

Aluminum or Plastic

Sunlight Dome Energy Saving Beneﬁts

Energy Consumption can be reduced down to 113,000 KWH per Year on Lighting lowering the Electricity Cost..
Reduced Energy Demand during Peak Load Hours
Reduced Carbon Emissions from reduced power generation
Reduction on Maintenance Cost for installed Artiﬁcial Lighting due to the reduced operational hours.

Natural Daylighting Solutions

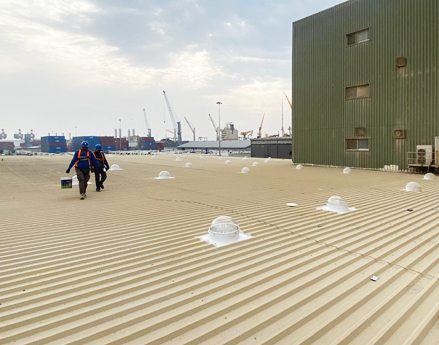

Logistics and Storage Warehouses

Oil & Gas, Industrial and Manufacturing Sector

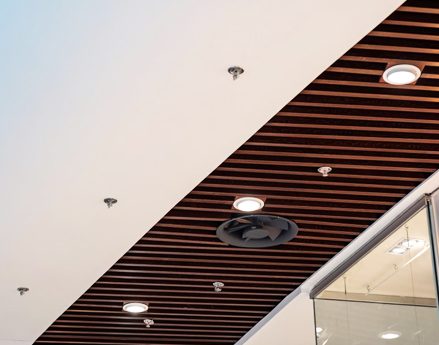

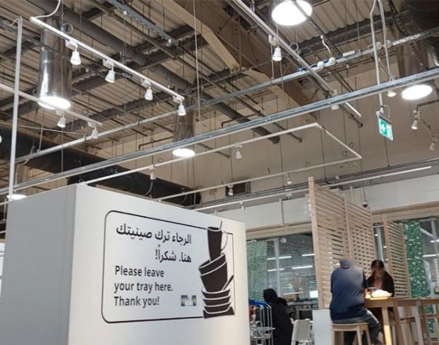

Commercial and Residential

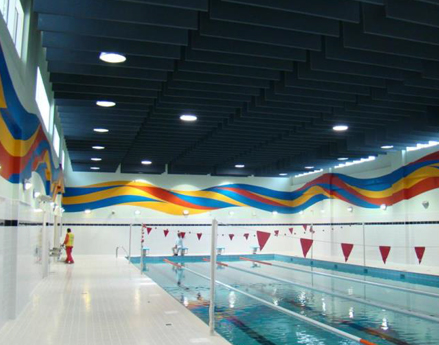

Education and Healthcare

Government and Military facilities

Offices Residential Villas

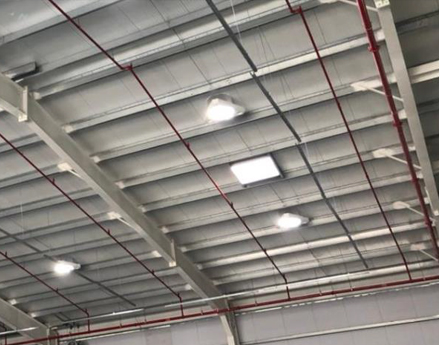

Special Projects (Floor Skylights, Wall Light
Ducts, Architectural Element designs)

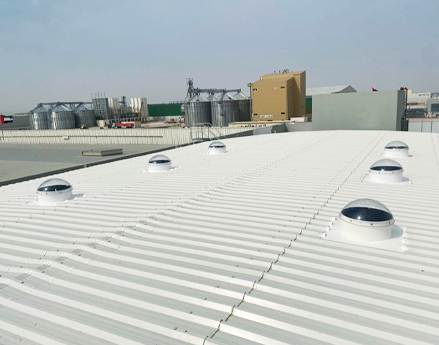

Tubular Skylighting , Roof Type

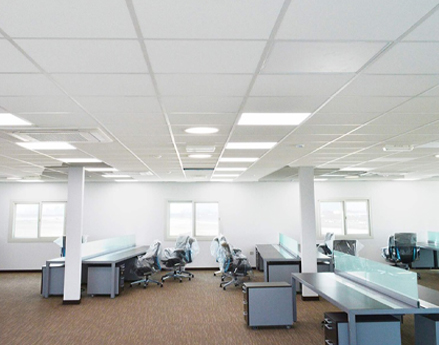

Tubular Skylight Natural Light Diffuser False Ceiling Type Assembly

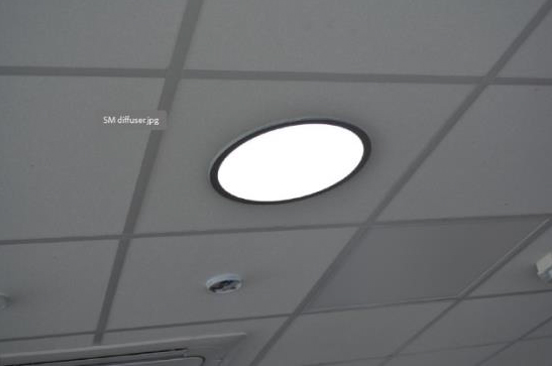

Ceiling Mounted Flat Type Diffuser Clear/Frosted Acrylic Type Aluminium Diffuser Holder

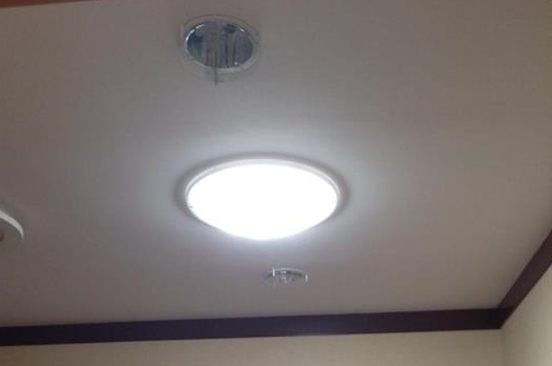

Ceiling Mounted Dome Type Diffuser Clear Prismatic/Frosted Prismatic Acrylic Type - Aluminium Diffuser Holder

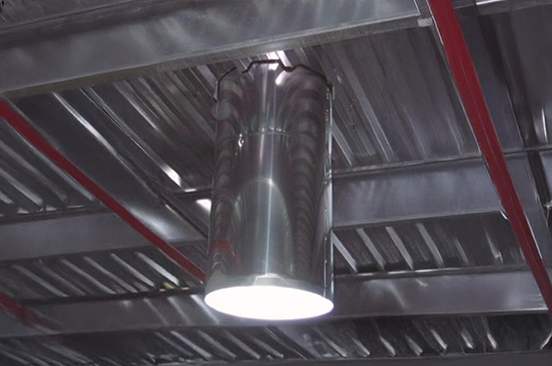

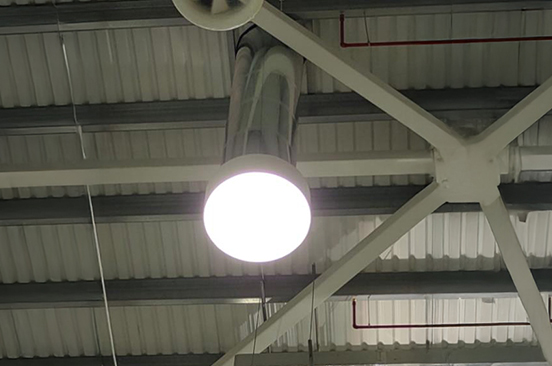

Tubular Skylight Natural Light Diffuser Open Ceiling Type Assembly

Open Ceiling Flat Type Diffuser Clear/Frosted Acrylic Type Aluminium Diffuser Holder

Open Ceiling Flat Type Diffuser Clear/Frosted Acrylic Type Aluminium Diffuser Enlarger (SLD74-90)

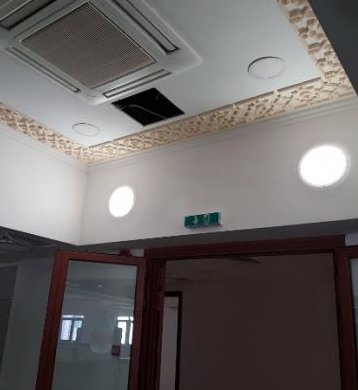

Tubular Skylight Natural Light Diffuser Wall Mounted Type Assembly

Wall mounted Flat Type Diffuser Clear/Frosted Acrylic Type Aluminium Diffuser Holder

Sunlight Dome UK Energy Efficient LED Solutions

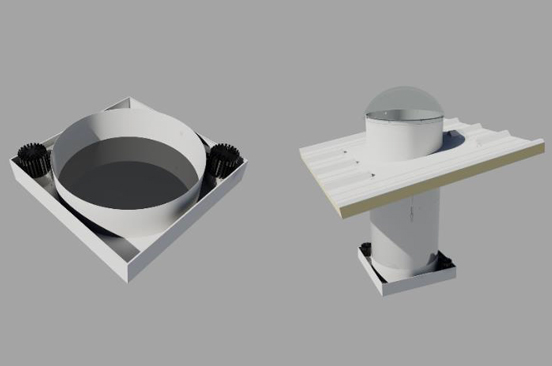

Sunlight Dome UK Dual LED Troffer Box Unit

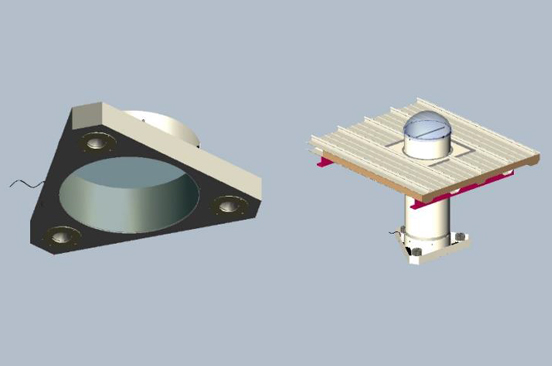

Sunlight Dome UK TriLED Troffer Box Unit

Tubular Skylight , Types and Sizes

SLD25 10-inch diameter.
Roof cutout Ø240mm.
On Metal Roof, Concrete Roof,
Tiled Roof System

SLD35 13-inch diameter.
Roof cutout Ø340mm.
On Metal Roof, Concrete Roof,
Tiled Roof Systems

SLD53 21-inch diameter.
Roof cutout Ø540mm.
Bespoke configurations on any
type of roofing systems.

SLD74 29-inch diameter.
Roof cutout Ø720mm.
Bespoke configurations on any
type of roofing systems.

Technical Values

Unit Type	Size	Lux Ave	Room Height	Coverage Area
SLD25	10 INCH	240	3M	25m²
SLD35	13 INCH	160	3M	50m²
SLD53	21 INCH	220	7M	50m²
SLD74	29 INCH		7M	50m²
